High-precision locknuts
AS 170x3

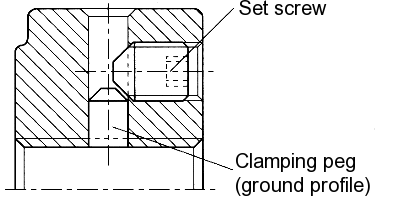

Type AS - Axial locking system
Thread and supporting surfaces ground in one operation
Axial runout accuracy 0.002
Technical Specification
Type
ground
Locking system
axial set screw
Axial runout accuracy
0.002 mm
Thread d1 4H
M170x3
3D-Data available
Order description
AS 170x3
d2
220 mm
h
33 mm
d3
193 mm
b
16 mm
t
7 mm
d4
195
d5
9.6
c
19 mm
m
M12
Weight g/part
3910
Material
Steel Rm 800 - 950 N/mm²Body black finishedBare and lubricated thread and bearing surface
AS 170x3_en
