Blind self-clinching nuts

B-M5-1

Type B (carbon steel)
Type BS (stainless steel)
Blind thread ends prevent ingression of dirt, spray water, etc.

E-Shop

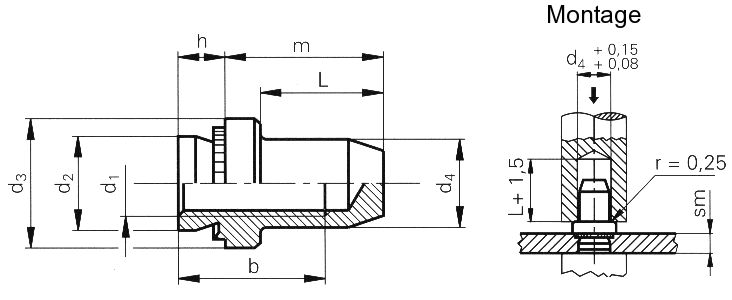

Technical Specification

Thread d1

M5

Min. sm

1.0 mm

Hole-Ø in the sheet
+0.08
  0

6.40 mm

Material

Case-hardened zinc-plated carbon steel.

Use

For sheet hardnesses up to HRB 80.

3D-Data available

Order description

B-M5-1

Max. d2

6.33 mm

d3 ±0.25

8.75 mm

Max. d4

6.02 mm

Min. b

7.1 mm

Max. L

9.8 mm

m ±0.25

11.2 mm

Max. h

0.97 mm

Min. edge distance up to the hole centre

7.1 mm

Information

Closed thread end protects against contamination etc.

Tools

Identify order numbers of PEMSERTER® tools (anvils and punches): Tooling Selector

Insertion machines

Further information

Downloads

B M5 1_en 53.2 KB
