Floating self-clinching nuts

AC-M6-2

Type AS (carbon steel)
Type AC (stainless steel)

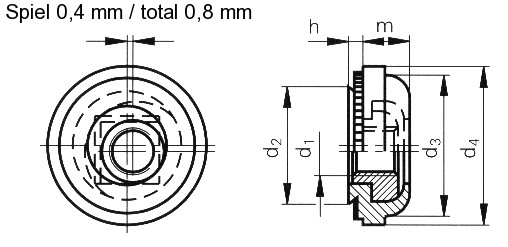

The internal floating nut permits up to 0.8 mm adjustment for mating hole misalignment.

E-Shop

Technical Specification

Thread d1

M6

Min. sm

1.4 mm

Hole-Ø in the sheet
+0.08
  0

13.10 mm

Material

Passivated grade 18/8 stainless steel (AISI 300).

Use

For sheet hardnesses up to HRB 70.

3D-Data available

Application

The internal floating nut permits up to 0.8 mm adjustment for mating hole misalignment.

Order description

AC-M6-2

Max. d2

13.06 mm

Max. d3

12.96 mm

d4 ±0.4

15.24 mm

Max. m

5.34 mm

Max. h

1.38 mm

Min. edge distance up to the hole centre

10.67 mm

Tools

Identify order numbers of PEMSERTER® tools (anvils and punches): Tooling Selector

Insertion machines

Further information

Downloads

AC M6 2_en 58.6 KB
