Self-clinching flush head studs

FH-M6-20

Type FH (carbon steel)
Type FHS (stainless steel)
Type FHA (aluminium)
Flush head studs not requiring additional deburring or welding. Available in different lengths.

E-Shop

Technical Specification

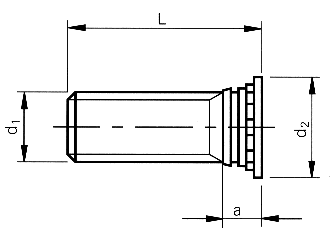

Thread d1

M6

Min. sm

1.6 mm

L ±0.4

20 mm

Hole-Ø in the sheet
+0.08
  0

6.0 mm

Material

Grade 8.8 through-hardened zinc-plated carbon steel.

3D-Data available

Order description

FH-M6-20

d2 ±0.4

8.2 mm

d3

6.1 mm

Max. a

3.0 mm

Min. edge distance up to the hole centre

7.9 mm

Use

For sheet hardnesses up to HRB 80.

Information

For thin sheet applications with 0.5 mm use Types TFH (M3 to M5).

Tools

Identify order numbers of PEMSERTER® tools (anvils and punches): Tooling Selector

Insertion machines

Further information

Downloads

FH M6 20_en 50.2 KB
