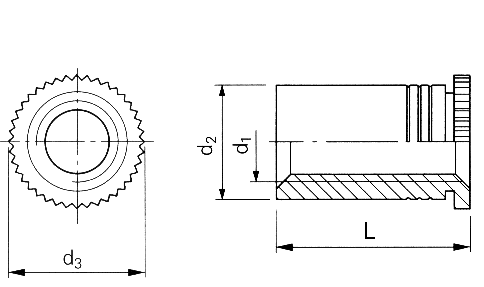

Self-clinching screwlock standoffs

Thread d₁

UNC4-40

Min. sm

1.0 mm

L
+0.05
-0.13

6.35 mm

Hole-Ø in the sheet
+0.08
  0

4.2 mm

Material

Passivated stainless steel (AISI 300).

Use

For sheet hardnesses up to HRB 70.

3D-Data available

Download

Order description

DSOS-440-250

Max. d₂

4.19 mm

d₃

4.92 mm

d₄
+0,2
  0

4.3 mm

Min. edge distance up to the hole centre

3.2 mm

Information

Specially designed for D-Sub applications.
