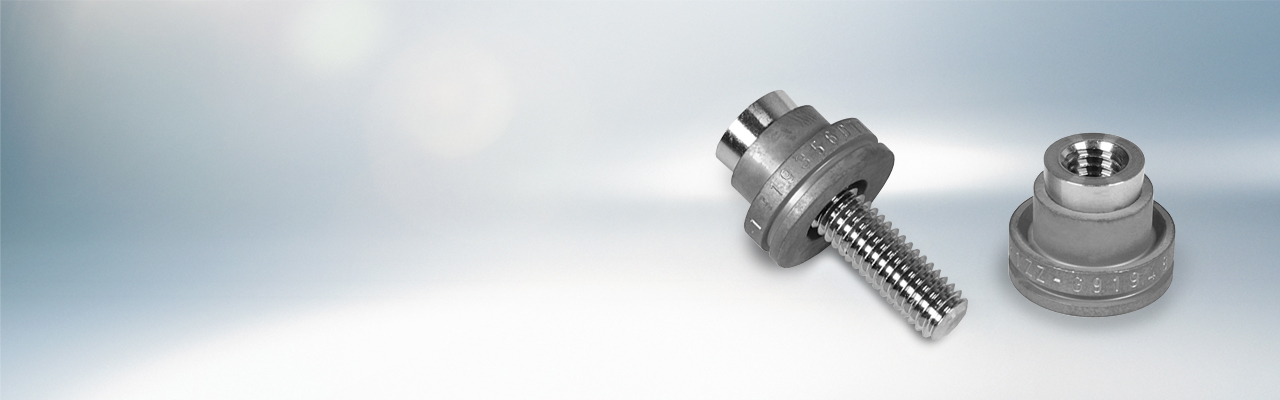

Cam-SafeĀ® grounding connection range
The system-based approach focuses on complete quality assurance of the whole product life cycle by offering full process management, traceability and archiving from start to finish to reduce the risk of failure. The specially adapted intelligent tooling, a vast improvement on traditional installation methods currently available on the market, makes the installation quick and easy, and provides a true quality inspection features.
Designed "from scratch" to make the process as simple, easy, and safe as possible, the Cam-Safe grounding connection system redefines the industry standard for safety critical electrical grounding.
The system comprises of:
- Grounding studs
- Grounding nuts
- Intelligent installation tooling
- Integrated barcode readers
- Software process management tools

System features & benefits
System process benefits:
- Full process traceability
- Process management via software / intelligent tooling
- Individual installation parameter archiving
- Visual installation confirmation
- Installer / user identification
- Software management tools
Tooling benefits
- Integrated barcode scanner
- USB interface
- Tool management software
- Force monitoring
- Save up to 150,000 installation records
- OLED screen for visual control
- OK/ not-OK display and evaluation
- Operator information
APPLICATION OVERVIEW

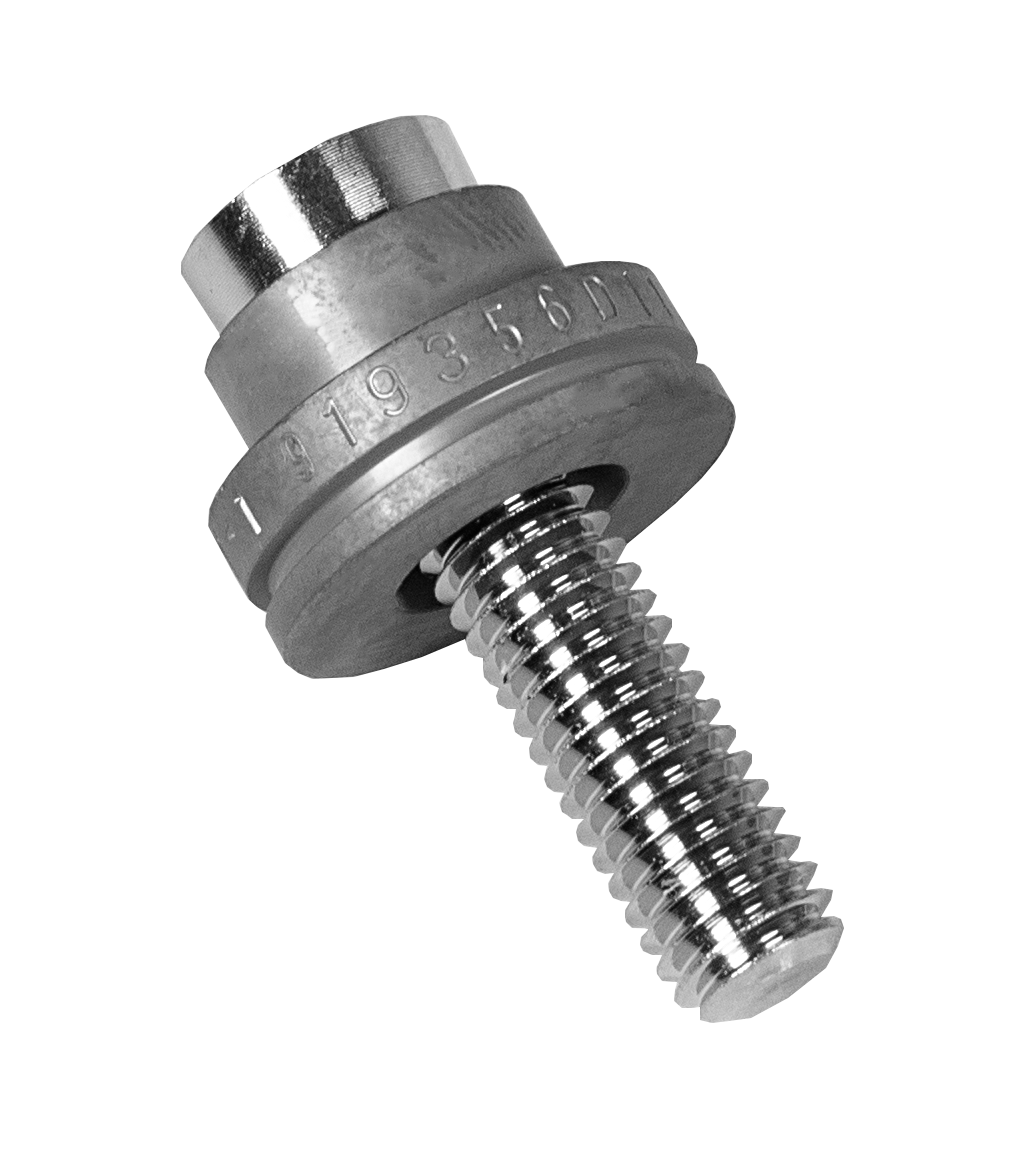

Grounding studs
The Cam-Safe grounding studs is available in a range of sizes to suit numerous material thicknesses.
- Unique contact feature enables superior lifetime performance
- Quick and easy to install
- Available for use with M6, M8 and M10 studs
- Aluminium, steel & stainless steel variants
- Suitable for material thicknesses from 1.5mm to 5mm
- Removal / repair / maintenance solution available
- Unique barcode of each connector for system implementation

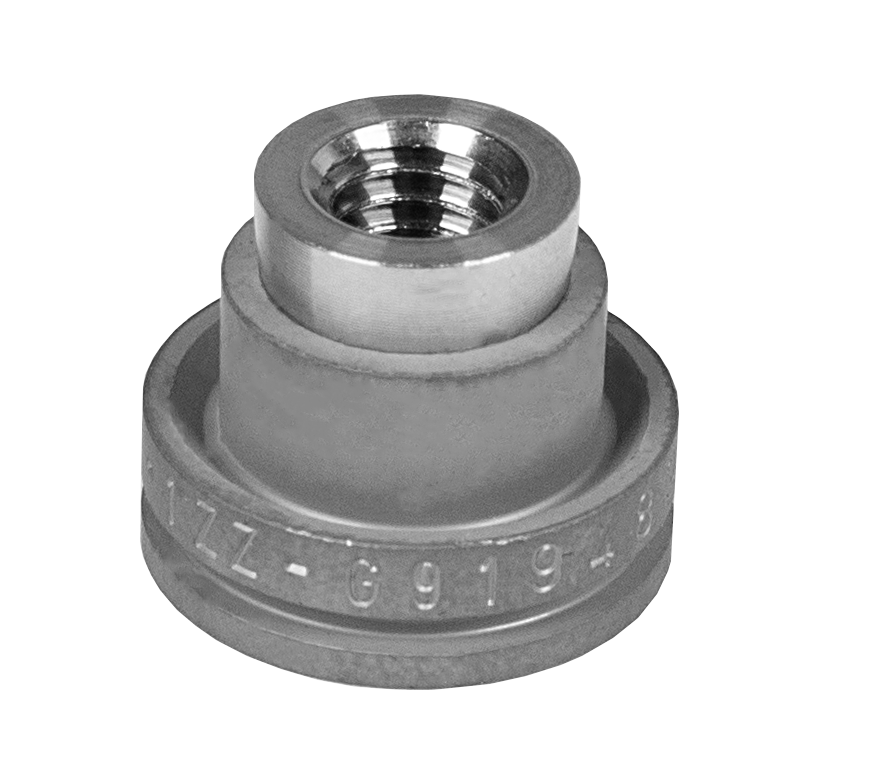

Grounding nuts
The Cam-Safe grounding nuts enables a grounding connection to be used in conjunction with conventional bolts.
- Quick and easy to install
- Available in sizes M6, M8 and M10.
- Unique contact feature enables superior lifetime performance
- Unique barcode of each connector for system implementation

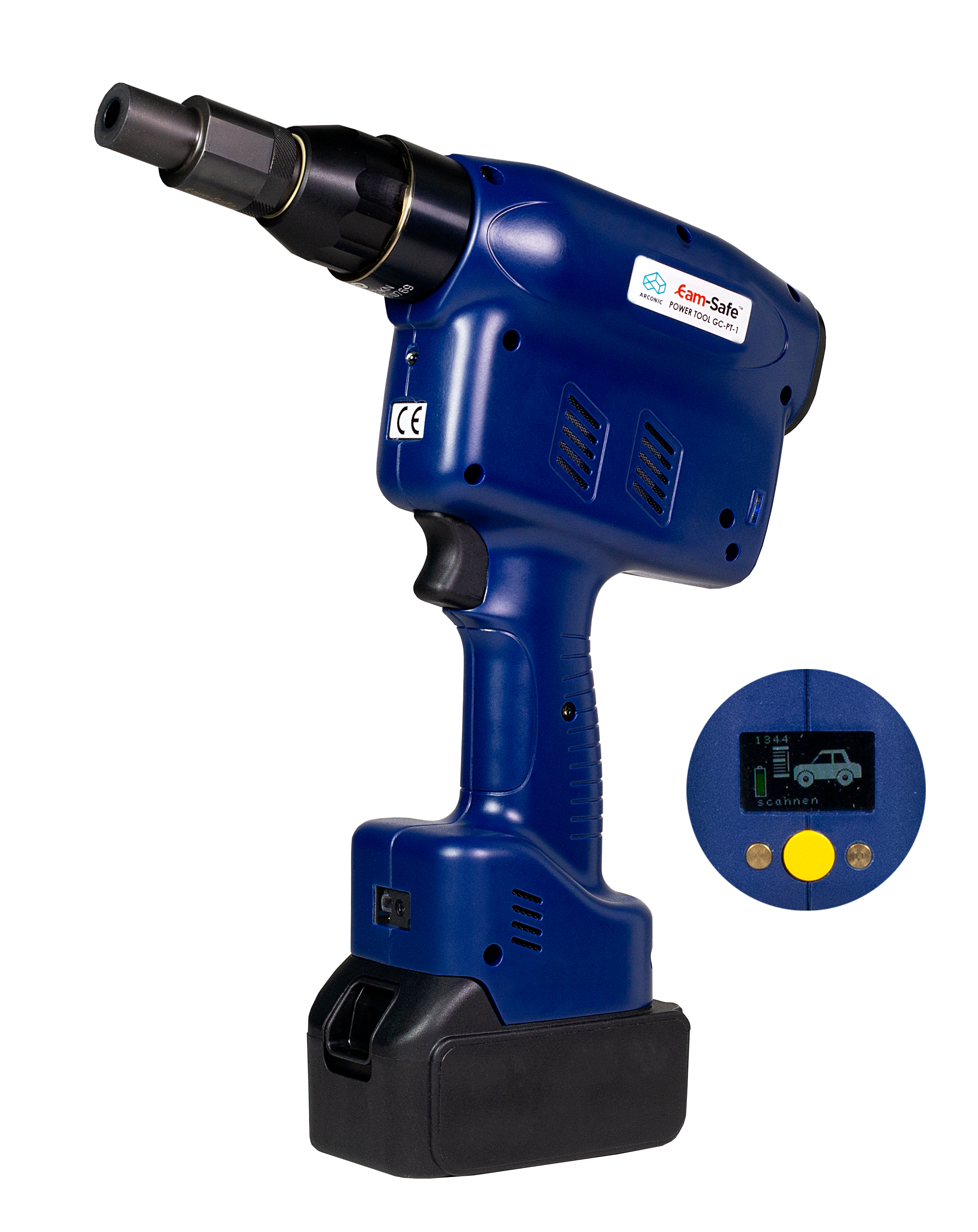

Installation speed & display screen
The installation tool is equipped with an easy to use display and has been especially adapted to install grounding studs and nuts quickly and effectively.
Installation speed:
- Simple process not requiring special skills
- Complete installation process takes <10 seconds per fastener
- Automatic tool release after installation
- Immediate OK / not-OK verification
- Audible and visual confirmation signals
Display screen:
- Superior OLED display
- Visual confirmation of process steps including barcode reading, automatic product recognition and verification of correct installations

Barcode functionality
The Cam-Safe grounding connection installation tool has a unique barcode reader to enable system integration.
- Quick and easy barcode reader function via trigger mechanism

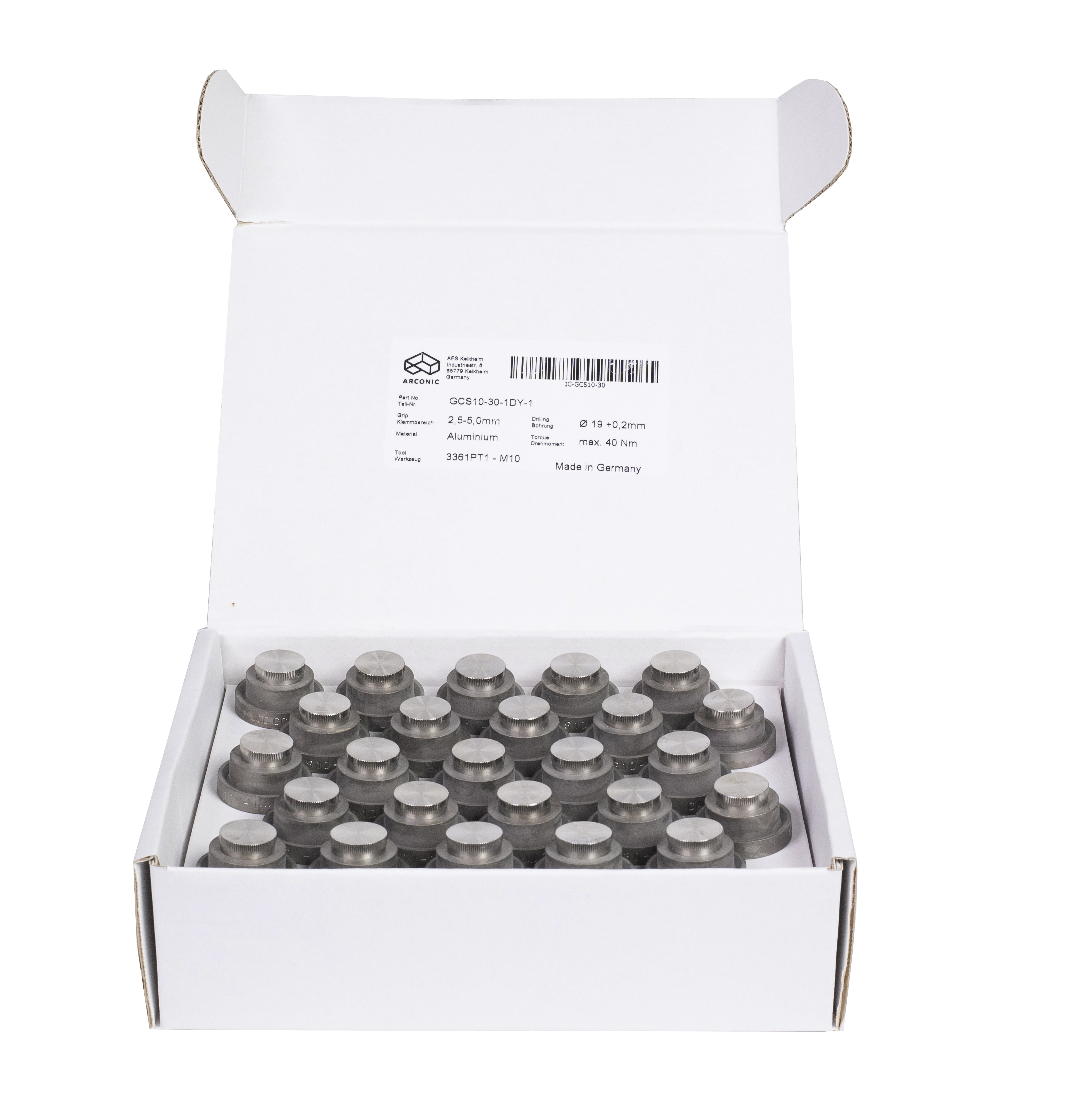

- Each fastener has a unique barcode on the box
- Reader enables automated product identification within the tool
- Tool setting automatically adjust to the scanned barcode
