HBMs_FASTEKS_KLIPKO_2017

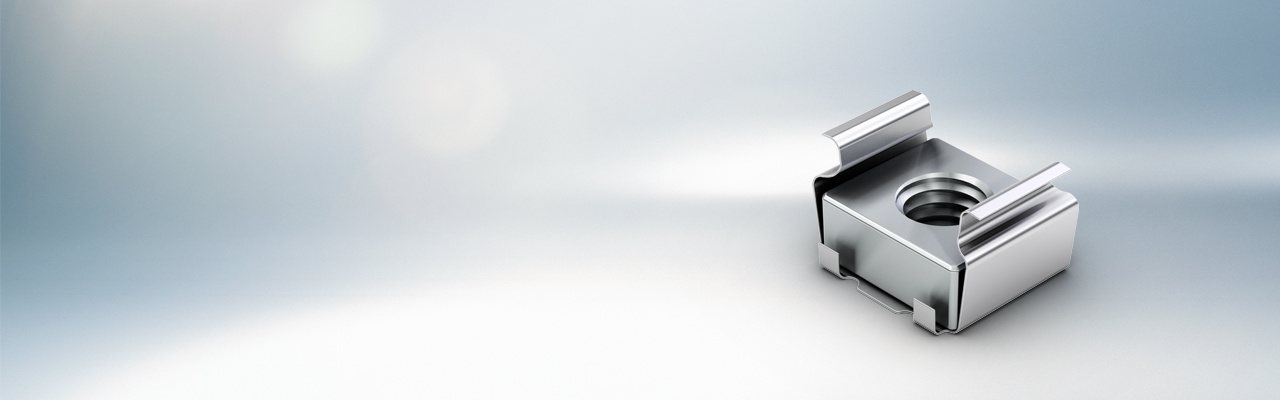

QUICK FASTENERS – FASTEKS KLIPKO® CAGE-NUTS & BLIND NUTS

Quick fasteners reduce weight, equalise tolerances and satisfy planners with their absolute effectiveness and ease of handling in a wide field of applications. Simple to install, flexible and stable, KVT quick-fastening system are used to connect different materials and surfaces to make a reliable bond.

Advantages:

  • High quality
  • Reusable
  • Particularly suitable to set from one side – “blind application”
  • Tolerance variation can be reduced due to floating fit in cage

> Show product details

CAGE NUTS

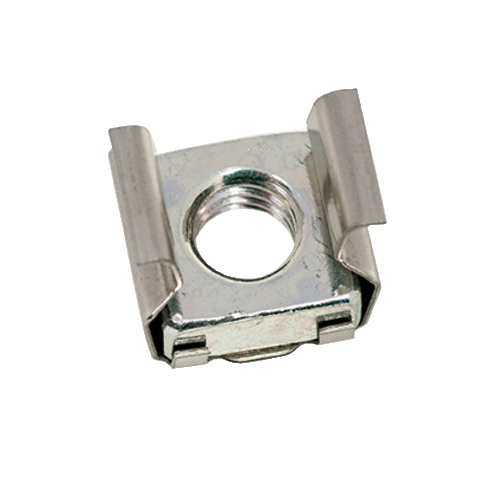

FASTEKS KLIPKO® cage nuts standard

Cage nuts are clipped in place from the rear using pliers. The play between nut and cage permits a large tolerance take-up. In slots this can be extended as desired.

Design:

  • Standard

Material:

  • Stainless steel
  • Galvanised steel

Thread sizes:

  • M3 - M4 - M5 - M6 - M8 – M10 – M12

Further designs and thread sizes on request

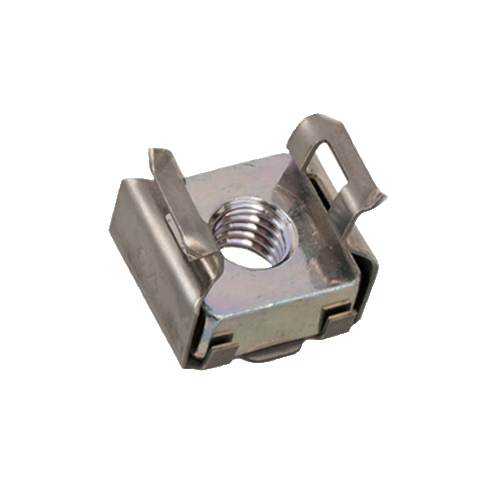

FASTEKS KLIPKO® Earthing cage nuts

Earthing cage nuts have cramps which penetrate the paint coating and contact the components on being screwed tight.

Material:

  • Stainless steel
  • Galvanised steel

Thread sizes:

  • M4 - M5 - M6 - M8 – M10 – M12

Further designs and thread sizes on request

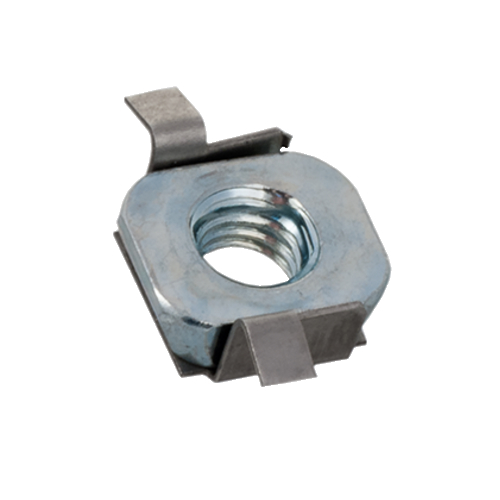

FASTEKS KLIPKO® Front-mounting cage nuts

A cage nut variation which is anchored from the front. In hollow profiles or bevelled sheets, it can be clipped in after painting quite easily with a screwdriver or a narrow strip of metal. It can be removed again and re-used at any time.

Material:

  • Stainless steel
  • Galvanised steel

Thread sizes:

  • M5 - M6 - M8

Further designs and thread sizes on request

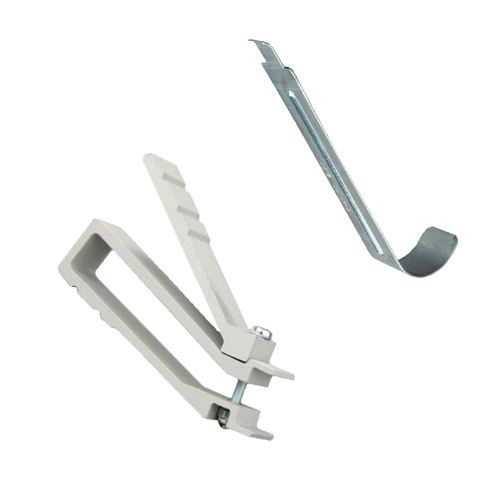

FASTEKS KLIPKO® Tool for cage nuts

Tool for installing and removing cage nuts.

Pliers:

  • Pliers for quick and accurate installation of FASTEKS KLIPKO® cage nuts
  • Standard and earthing cage nuts
  • Speedy setting
  • Reliable installation
  • Does not damage the installation surface

Metal tongue:

  • Simple metal tongue for installing and removing all FASTEKS KLIPKO® cage nuts

OTHER QUICK FASTENERS

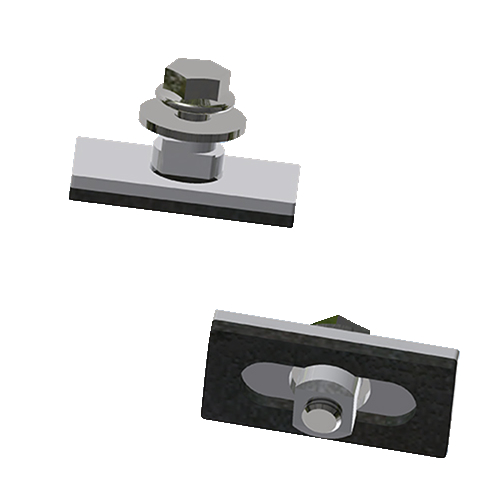

ecosyn®-SFT

ecosyn®-SFT is a system that was developed to easily connect two components with elongated holes.

The big advantage of this innovative solution is that it combines all connecting elements in one module.

> More details

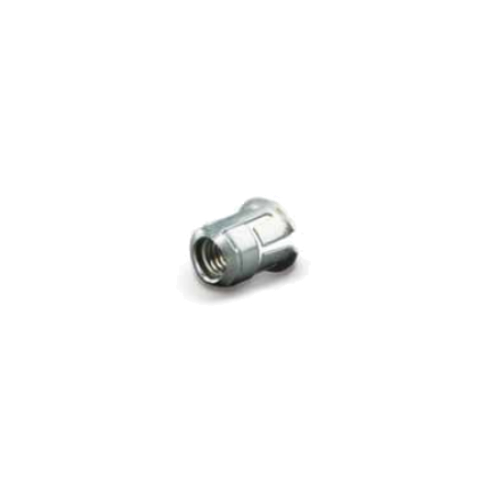

STECKO Blind nuts / all-metal design

Can be set blind without tools (hollow profile)

Material:

  • Galvanised steel

Thread sizes:

  • M4 - M5 - M6 - M8

Further designs and thread sizes on request

NILKO Blind nuts / polyamide design

  • Can be set blind without tools (hollow profile)
  • Good chemical resistance to oils and grease
  • Dielectric (non-conductive)

Material:

  • Brass, polyamide

Thread sizes:

  • M3 - M4 - M5 - M6

Further designs and thread sizes on request

Haven't found the right nut or a suitable quick-release fastener?

If the standard is no longer sufficient - we also manufacture customized special solutions for you based on drawings.

Get in touch with our drawing parts experts. We advise you quickly, professionally and free of charge.

We support you with CAD design and work with you to develop perfect solutions for your challenges.
