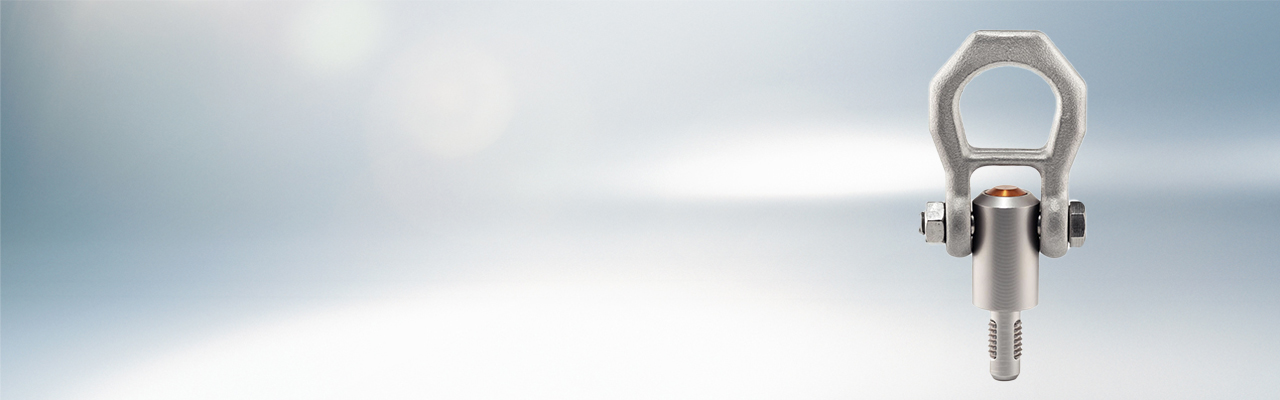

Halder threaded carrying bolt

Halder - Threaded lifting pins

Ball lifting pins and threaded lifting pins are robust support elements that can be used quickly and easily and with which even heavy loads can be lifted quickly and safely. The tested ball lifting pin is already well-known and has proven itself many times in industrial use. The threaded lifting pins, on the other hand, is a genuine innovation: only a suitable metric thread is required for fastening in the workpiece.

Advantages:

  • Max. Load 840 kg with M16
  • The existing metric thread is suitable.
  • Simple assembly at the push of a button, without screwing in
  • 85% time savings during assembly and disassembly compared to eye bolts
  • Easy reusability
  • Safe lifting from different positions / angles
  • Certified safety according to TÜV Süd / CE
Halder Logo
Factsheet Contact

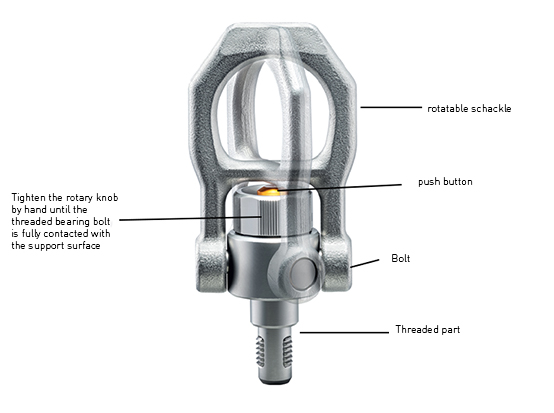

How the threaded lifting pins work

  1. The movable shackle on the lifting pin is folded back.
  2. At the push of a button, the support thread retracts and can be inserted into the nut thread.
  3. By loosening the button, the supporting thread is anchored to the nut thread.
  4. The threaded lifting pin must be screwed in by hand up to the stop.
  5. The load can be lifted. It is also possible to be lifted from different angles thanks to the movable shackle.

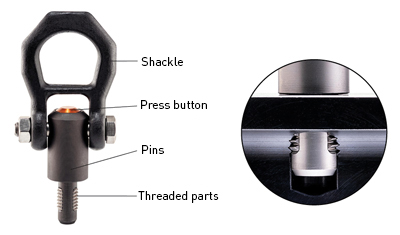

Function principles threaded lifting pins Halder

Self-locking with swivel shackle

  • max. loads of up to 840 kg with M16
  • The existing metric thread is suitable
  • Simply assembly at the push of a button, without srewing in
  • 85% time savings during assembly and disassembly compared to eye bolts
  • Easy reusability
  • Safe lifting from different positions/Angular position
  • Certified safety according to TÜV Süd/CE
halder
Die Produkt- und Verwendungssicherheit wurde vom TÜV Süd mit CE-Kennzeichnung geprüft.

Safety First

  • The product and use safety has been tested by TÜV Süd with CE marking.
  • Operating instructions with a declaration of EG-conformity are enclosed with each individual threaded lifting pin.
  • Locking studs prevent unintentional unlocking.
  • There are two corrosion-resistant versions.

Threaded lifting pins - quick and easy to use

See our video for more information.
