HBMs_KOENIG_CHECK_VALVE_2017

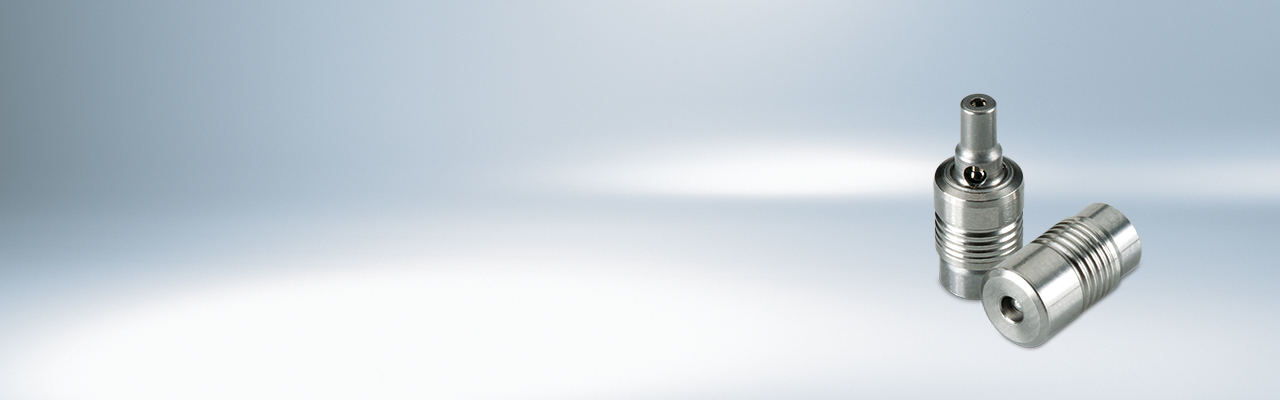

CHECK VALVE – FLOW CONTROL SOLUTIONS

The KOENIG Check Valve ® is simple to install and a reliable solution to control flow directions in fluid systems.

Prednosti:

  • Metal-na-metal zaptivanje sprečava bočno propuštanje.
  • Bez dodatnih zaptivača ili lepljivih spojeva - uklanja rizik od kontaminacije.
  • Samostalni deo, sigurno usidren u vibracijskim okruženjima.
  • Jednostavan postupak uklanjanja.
  • Prečnik otvora i pritisak pucanja prilagođeni su vašim zahtevima za protok

KARAKTERISTIKE

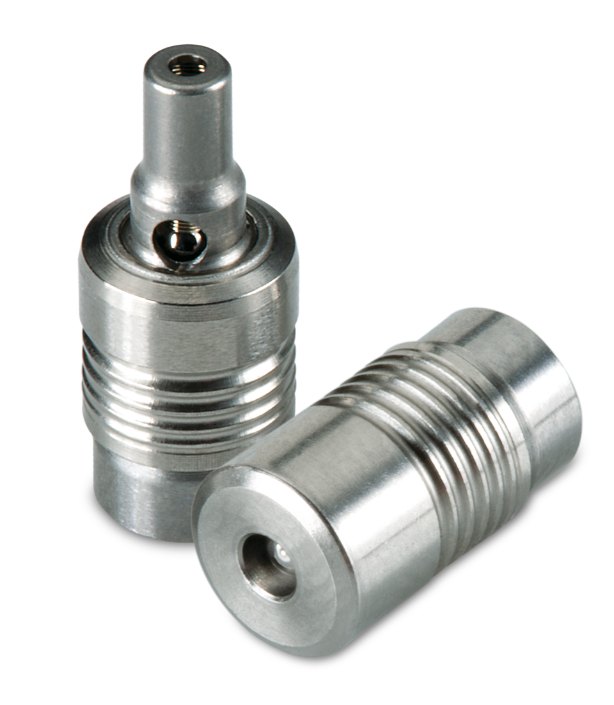

check-valve

  • Max. working pressure differential: 300 bar (4351 psi) in checked direction
  • Check valve sizes: 5,5 mm, 8 mm, 10 mm (0,217 – 0,394 Zoll)
  • Material: stainless steel
  • Cracking pressure: 0 – 2,5 bar
  • Modular concept: Forward Flow Valve (FF) / Reverse Flow Valve (RF)
  • Standard orifice diameters: 1,4 mm (0,055") and above
Smaller orifices available upon request

THIS IS HOW KOENIG CHECK VALVE® REGULATES FLOW DIRECTION

The KOENIG CHECK VALVE® easily installs into an as-drilled hole. It is simply dropped into a counterbored hole. The integrated pin is then pushed inside to expand the sleeve. The grooves on the outside of the sleeve anchor into the base material for clean installation.

KVT-Fastening provides a range of CHECK VALVE® for various application requirements. The cracking pressure can be optimized to your system requirements; this allows you to have complete design control. Please contact us to discuss your custom requirements.
