Lean Bonding

bigHead® Lean Bonding®

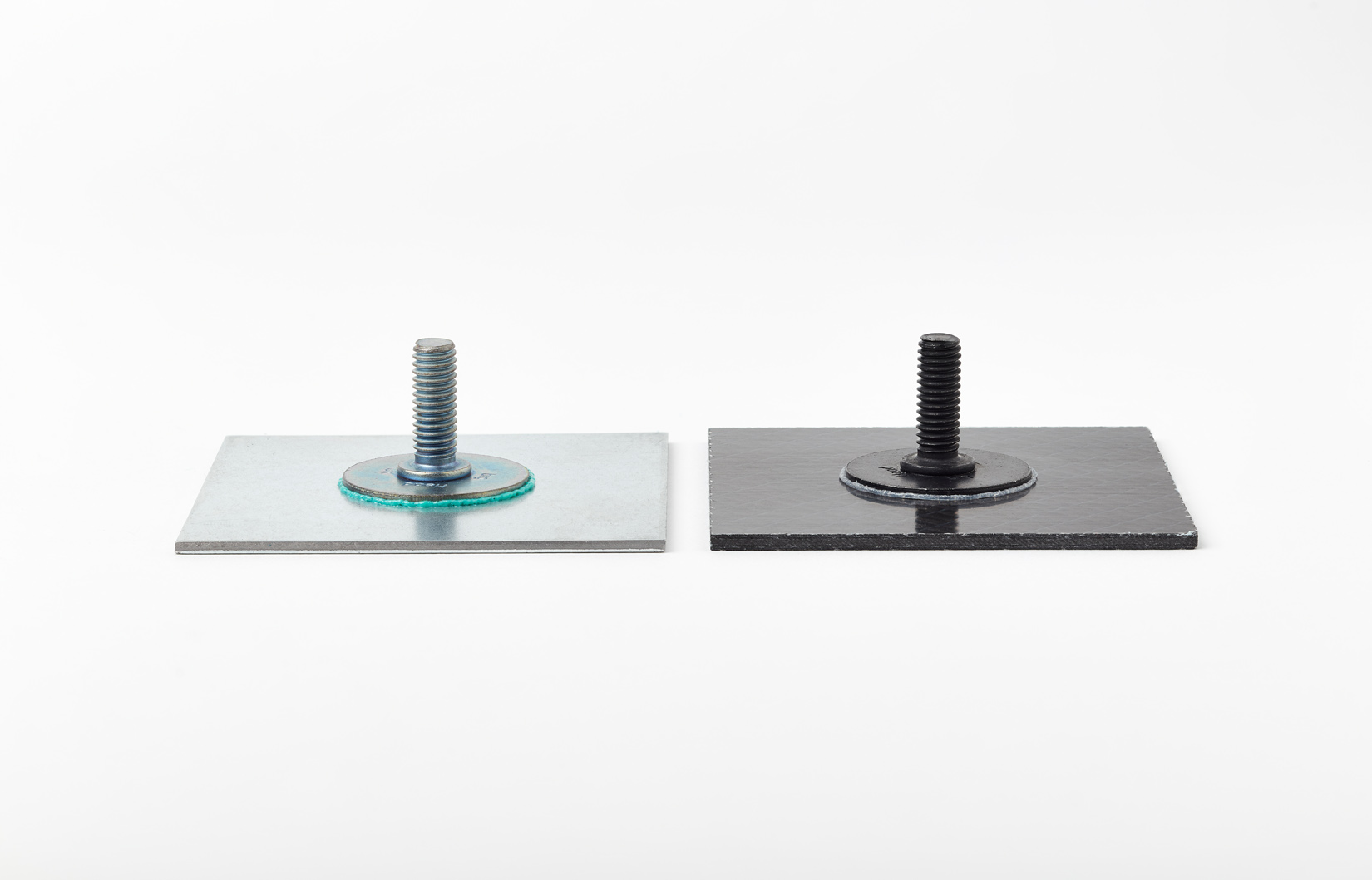

A quick, clean and reliable method of fastening connecting elements either on composite materials or on metallic substrates. bigHead® Lean Bonding® can be used fully automatically for large quantities, or applied manually for small requirements. With a cycle time of just ten seconds, bigHead® Lean Bonding® is able to improve your production process impressively.

Advantages:

  • Simple: single component and a single-stage process
  • Speedy: workable after only ten seconds
  • Discreet: no visible signs on the “A” surface
  • Easy: access from one side
  • Practical: can be handled immediately
  • Adaptable: a variety of coatings, sizes and adhesives available
  • Clean: no cleaning up of adhesive necessary
  • Versatile: bonds to GFRP, CFRP, aluminium, steel etc.



Performance:

  • Typical tensile strength 3.3 to 7.7 MPa
  • Variation coefficient (CoV) typically < 5 %
  • Resistant to red rust for 240-1000 hours
Lean Bonding logo

The Process: automated, semi-automatic or manual?

The Lean Bonding® process can be integrated into a fully automated process. From individual automated cells to complete system integration in the factory. For smaller volumes we can also offer as an alternative a simple and efficient processing system for manual bonding processes.

Contact Icon Get in contact with us

We are happy to answer your questions.

Types of blind rivet nuts

Product details

Fasteners

  • Head diameter: 24 mm
  • Thread sizes: M5 or M6
  • Thread lengths: 16 or 20 mm
  • Material: carbon steel

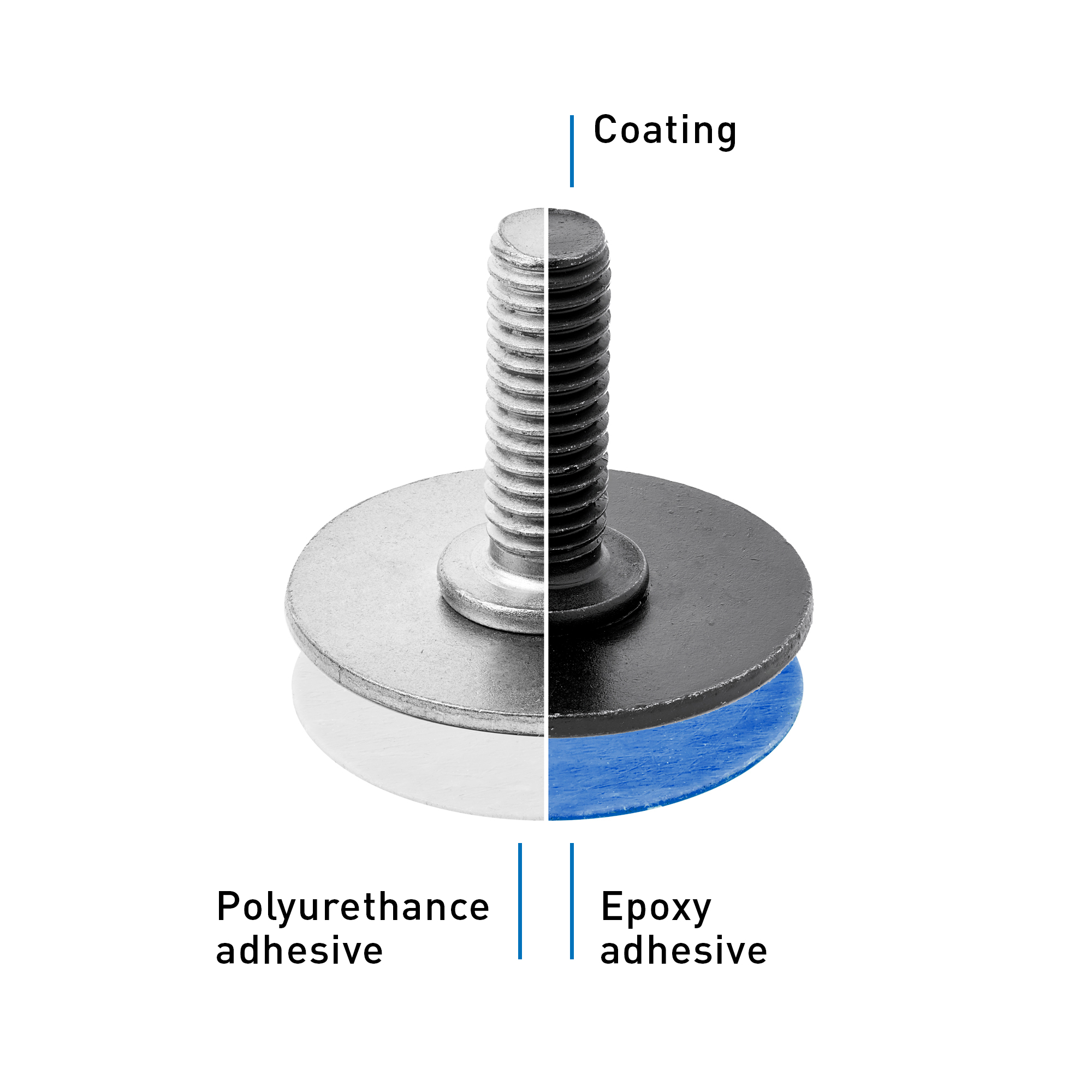

Coating

The bigHead® fastening element is available in a wide range of OEM-approved coatings. For further information please visit The tecHub.

Adhesive

Polyurethane: fast. Firm, low-temperature-curing epoxy resin: very strong, CDC-compatible, highly resistant to environmental influences.
