Advantages:
- Extremely stress-resistant even in thin sheets from 0.5 mm
- No special treatment of the drill-hole needed
- No reworking of the thread
- Ideal also for coated surfaces
- High positional accuracy
We are happy to help
Thanks to the wide and comprehensive range, there are many ways to use them for a wide variety of applications.
We are happy to support you in the search and selection of the best product to solve your challenges.
Take advantage of our many years of experience and find out how our self-clinching solutions can create real added value for your company. We offer:
- C-parts optimization - reduction of the variety of parts
- Development partnership
- Automation and process monitoring
- Complete systems - everything from a single source
We advise you quickly, free of charge and competently.
> Contact us now
EXTRACT FROM THE COMPLETE RANGE OF PEM® SELF-CLINCHING FASTENERS:
Self-clinching nuts | PEM®
Self-clinching nuts have high twist- and pull-out resistance. They are available in various different shank lengths. Self-clinching nuts are suitable for metallic materials, in some cases even for use in stainless steel panels. The range of parts also includes nuts flush on both sides, closed parts, nuts with thread-locking as well as miniature designs. There is a parallel product line for insertion in PC boards.
Design:
- Available in various materials, surface designs, lengths and variations
Thread sizes:
- From M2 to M12
Round self-clinching nuts | PEM®
Round self-clinching nuts are suitable for twist-resistant screw connections resilient from both sides in thin-walled workpieces. The designs of type RMHB were specially designed for use in restricted installation spaces as miniature designs. Unlike self-clinching nuts, the shank is riveted. For this reason, distance from the edge is a less-important criterion.
Material:
- Galvanised steel, colourless passivated
Thread sizes:
- M3 – M4 – M5
Further designs and thread sizes on application
Self-clinching studs | PEM®
The self-clinching studs for through holes are flush on the head side after installation. Thus no additional flanging or welding is required.. Suitable for use in metallic materials, in some cases even for use in stainless steel panels. Heavy-duty stud designs with projecting head offer even better high twist- and pull-out resistance. Special studs for use in blind holes permit concealed installation.
Design:
- Available in various materials, surface designs, lengths and variations
Thread sizes:
- From M2.5 to M10 and also in coarse-thread
Further designs and thread sizes on application
Self-clinching high-strength studs
Self-clinching threaded studs for extremely high torque-out and pull-through resistance.
Design:
- Type: HFH, HFHS, HFHD, HFHDS
- Available in various materials, lengths and variations
Studs (threadless) | PEM®
In addition, threadless studs for metallic materials are available. These can be used as positioning pins or stops.
Design:
- Available in various materials, lengths and variations
Self-clinching standoffs closed| PEM®
Self-clinching standoffs for through holes are flush on the head side after installation. Thus no additional flanging or welding is required.. Available in open and closed design. Suitable for use in metallic materials, in some cases even for use in stainless steel panels. Twist-resistance is assured by the hexagon head. Special standoffs for use in blind holes permit concealed installation.
Design:
- Available in various materials, lengths and variations
Thread sizes:
- M3 – M4 – M5 and miniature thread sizes and various through-hole options
Self-clinching standoffs open| PEM®
Self-clinching standoffs for flush mounting on the press-fit side.
Can be pressed into round holes, hexagon as protection against twisting.
Design:
- Different materials, lengths and variants available
Thread sizes:
- M3 - M4 - M5 as well as miniature thread sizes and various through hole options
Self-clinching captive panel screws | PEM®
Self-clinching captive panel screws are captive screws either sprung or unsprung. Great variety with various fixing and release possibilities, various support surfaces and lengths of screw.
Design:
- Available in various materials, lengths and variations
Thread sizes:
- M3 – M4 – M5 – M6
Spacer | PEM®
Push-in spacers for keyhole installation can be used in metallic materials. They facilitate speed installation and removal of components.
Design:
- Stainless steel, various spacer lengths
SMT nuts | PEM®
These self-clinching nuts are taped, and are specially designed for PC board mounting. Available with or without adhesive spot. Set by soldering both in through-contact and non-plated drill-holes. There is no risk of damage to the PC board when this procedure is used.
Material:
- Tinned steel
Thread sizes:
- M2 – M2,5 – M3 – M4 –M5
Further designs and thread sizes on application
SMT spacers | PEM®
These spacers are taped and are specially designed for PC board mounting. Available with or without adhesive spot. Set by soldering both in through-contact and non-plated drill-holes. There is no risk of damage to the PC board when this procedure is used.
Material:
- Tinned steel
Thread sizes und designs:
- M3 and through holes 3.6 – 4.2
Further designs and thread sizes on application
PEMSERTER® MACHINERY RANGE:

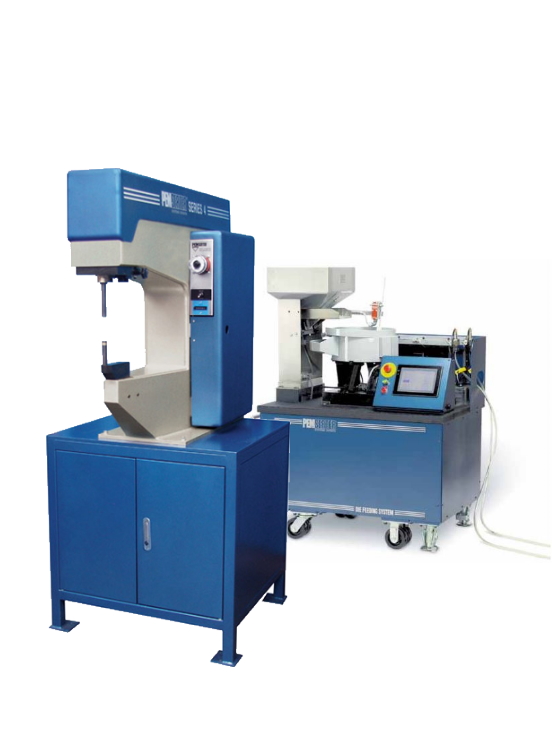

PEMSERTER® insertion presses & accessories
From the manual entry-level model via the semi-automatic version with feed option to the high-tech machine with four-way feed and robot connection, PEM® has a range of machinery to cover every requirement. Even the feeding of fasteners directly into the application press is possible.
PEMSERTER® insertion presses & accessories
Our multifunctional machine program for more productivity and quality.
All PEM self-clinching fasteners can be reliably processed with the press-in machines.
From threaded bolts and bushings to press-in nuts and connectors.
Even special solutions are easily possible with the extensive tool kit.
