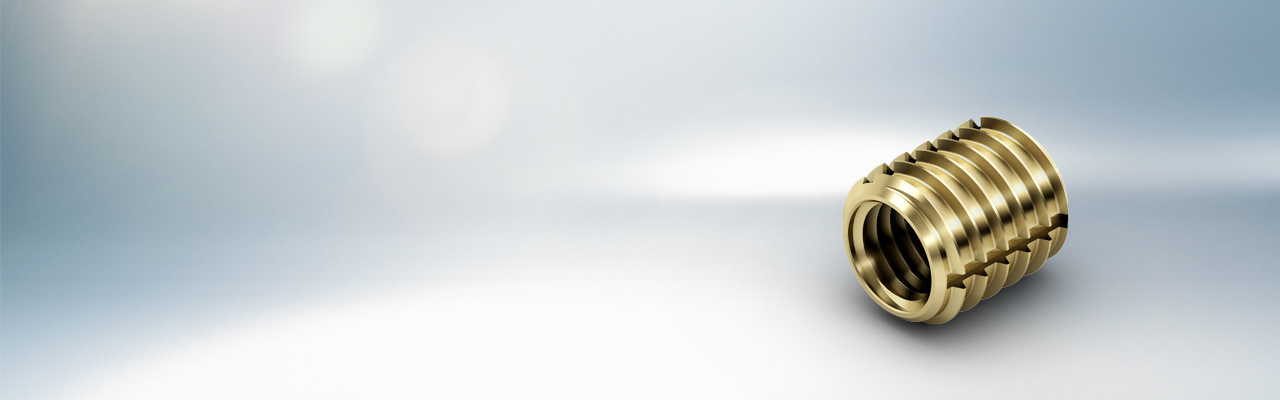

TAPPEX® – THREAD INSERTS

TAPPEX® thread inserts made from brass (also available in steel and stainless steel) create precise, robust nut threads in workpieces made from plastic (thermoplastics, thermosets & laminates), GRP light-metal alloys and some notch-sensitive materials. TAPPEX® have been specified for over 50 years by OEM & their supply chains & Plastics Industries globally.

Advantages:

  • Creation of a high strength thread in plastic & wood
  • Wear-free & anti-corrosion
  • Allowing repeated tightening and loosening of bolted fastenings
  • Versatile
  • Various installation opportunities

We are happy to help

Thanks to the wide and comprehensive range, there are many ways to use them for a wide variety of applications.

We are happy to support you in the search and selection of the best product to solve your challenges.

Take advantage of our many years of experience and find out how our threaded insert solutions can create real added value for your company. We offer:

  • C-parts optimization - reduction of the variety of parts
  • Development partnership
  • Automation and process monitoring
  • Complete systems - everything from a single source

We advise you quickly, free of charge and competently.

> Contact us now

SFL Beratung

TAPPEX® THREAD INSERT TYPES:

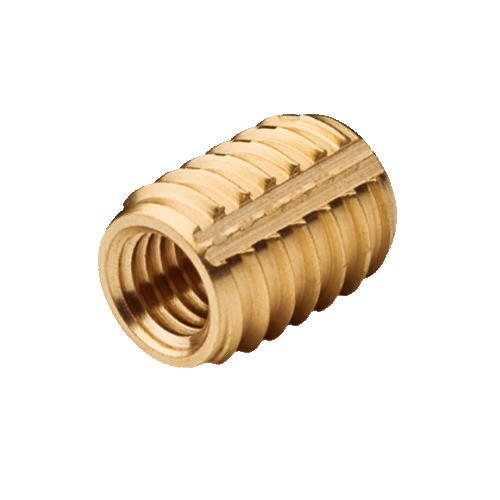

TRISERT® Thread inserts for screwing in

Thread inserts for screwing in can be used as self-cutting thread inserts in thermoplastics, glass-fibre reinforced plastics (GRP) and thermosets. In pre-moulded and pre-drilled attachment holes the three cutting slots create firm embedding in the base material. TRISERT® guarantees a clean, chip-free inner thread. A particular advantage of the thread inserts without heads is that they can be used on both sides.

  • Thread sizes: M2, M2,5, M3, M3,5, M4, M5, M6, M8, M10
  • Model: With and without head
  • Installation: Screw in
  • Material: Brass

TRISERT-3® Steel thread inserts for screwing into light alloys and plastics

The TRISERT-3® thread inserts, made from steel or stainless steel, fulfil the highest of requirements, e.g. in medical technology or in the maritime or groceries industry.

  • Thread sizes: M3, M4, M5, M6, M8, M10
  • Model: With small head
  • Installation: Screw in

Material:

  • Steel
  • Stainless steel 303 comparable with 1.4305
  • Stainless steel 316 comparable with 1.4401

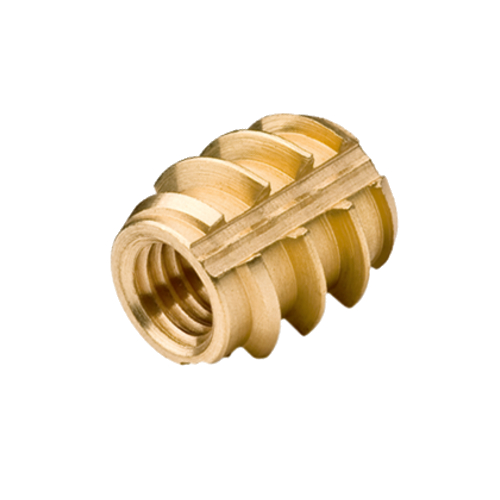

FOAMSERT® Thread inserts for screwing into foams and wood

The FOAMSERT® thread inserts (TRISERT® subgroup) are special self-cutting thread inserts that are used in pre-drilled holes in foams and wood.

  • Thread sizes: M2, M2,5, M3, M3,5, M4, M5, M6, M8
  • Model: With and without head
  • Installation: Screw in
  • Material: Brass

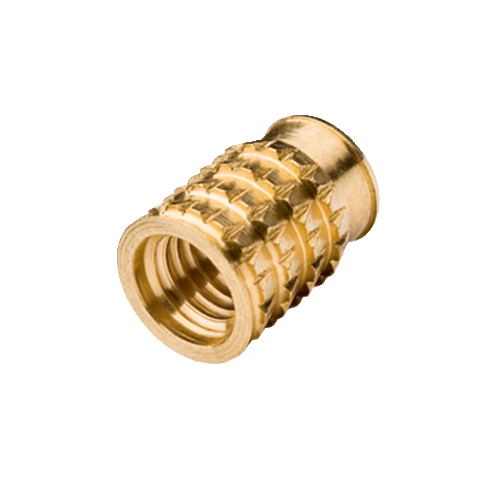

MULTISERT® Thread inserts for pushing in

The MULTISERT® thread inserts with inner threads and patented jag fastening sections are particularly well-suited to being pressed into thermoplastic materials. Installation process: pressing in, ultrasound embedding, heat embedding (local melting of the plastic).

  • Thread sizes: M1,6, M2, M2,5, M3, M3,5, M4, M5, M6, M8, M10, M12
  • Model: With and without head
  • Installation: Pressing in
  • Material: Brass

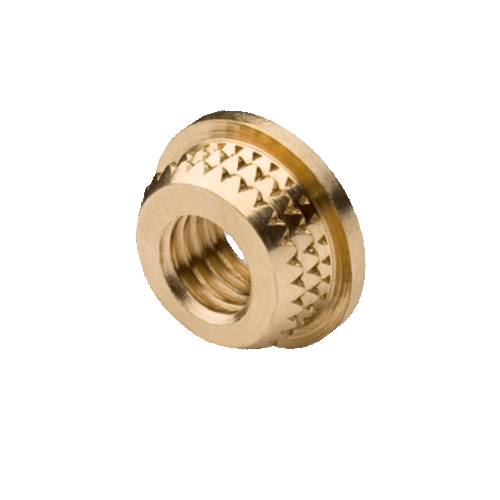

MICROBARB® Thread inserts for pushing in

MICROBARB® thread inserts for pushing in with micro knurling. This subgroup of the MULTISERT® thread inserts is ideal for use in thin-walled materials.

  • Thread sizes: M2, M2,5, M3, M4, M5, M6, M8, M10
  • Model: With head
  • Installation: Pressing in
  • Material: Brass

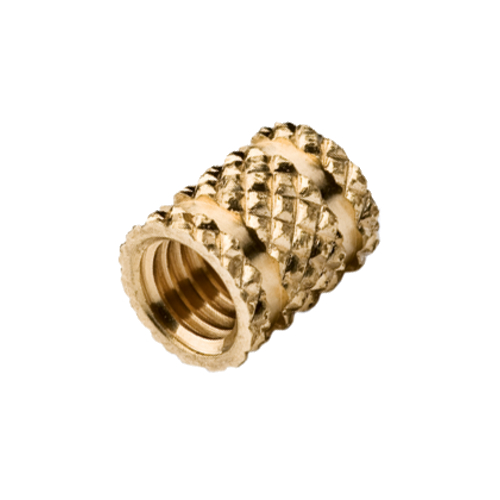

HIMOULD® Thread inserts for insert moulding

HIMOULD® thread inserts made from brass for insert moulding are used in moulded and cast components. Thanks to the thin walls, the HIMOULD® can position and mould directly into the moulding edges. Extraordinarily versatile in use for thermoplastic and duroplastic mouldings with through hole and stud hole threads.

  • Thread sizes: M2, M2,5, M3, M3,5, M4, M5, M6, M8, M10, M12
  • Model: With through hole thread or stud hole thread
  • Installation: Insert moulding
  • Material: Brass

Didn't find the right thread insert?

If the standard is no longer sufficient - we also manufacture customized special solutions for you based on drawings.

Get in touch with our drawing parts experts. We advise you quickly, professionally and free of charge.

We support you with CAD design and work with you to develop perfect solutions for your challenges.
