FASTEKS FTI

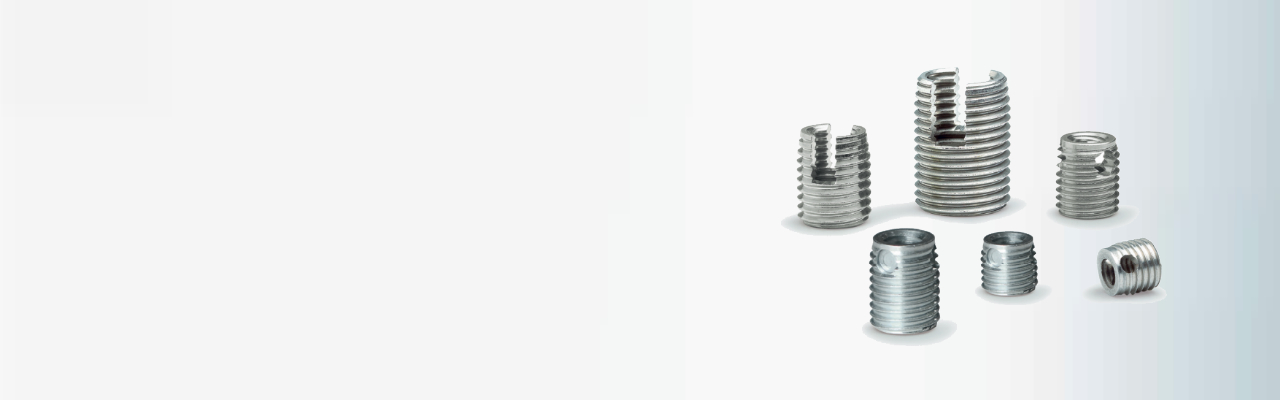

FASTEKS® THREADED INSERTS

FASTEKS® steel or stainless steel threaded inserts create precise, durable internal threads in workpieces made of light metal alloy and other materials with low shear resistance.

We are happy to help

Take advantage of our many years of experience and find out how FASTEKS thread inserts can create real added value for your company.

We will advise you quickly, free of charge and competently on all types of our broad product portfolio.

> Contact us now

FASTEKS® THREADED INSERTS

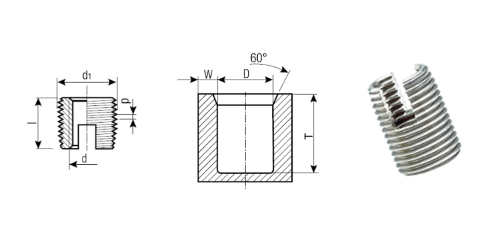

Threaded inserts with cutting slots

Case-hardened steel, galvanized blue / INOX 1.4305

Available in M2.5, M3, M4, M5, M6, M6a, M8, M10, M12, M14, M16 and M20


Here you can find the order designations | Download CAD model

Features:

  • Proven standard product can be used for all applications
  • 2 cutting slots, chip forming
  • The first two threads are conical, the insert works like a thread cutter
  • For materials with low to medium tensile strength (but tends to compress in hard materials)

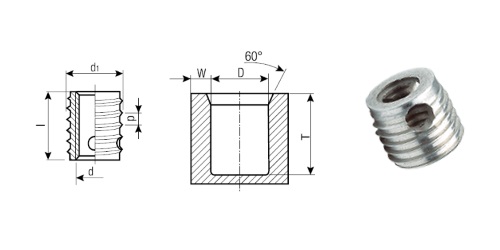

Threaded inserts with cutting holes, short

Case-hardened steel, galvanized blue / INOX 1.4305

Available in M3, M4, M5, M6, M8, M10, M12, M14 and M16

Here you will find the order designations |  Download CAD model

Features:

  • Further development of version 1 (with cutting slots)
  • For materials with higher tensile strength (does not tend to compress)
  • The thread is cut using 3 extremely sharp-edged cutting bores
  • The first two threads are conical, the insert works like a thread cutter
  • Chip-forming

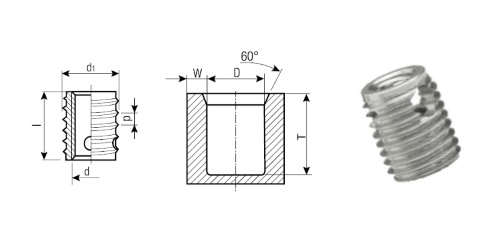

Threaded inserts with cutting holes, long

Case-hardened steel, galvanized blue / INOX 1.4305

Available in M3, M4, M5, M6, M8, M10, M12, M14 and M16

Herer you can find the order designations |  Download CAD model

Features:

  • Further development of version 1 (with cutting slots)
  • For materials with higher tensile strength (does not tend to compress)
  • The thread is cut using 3 extremely sharp-edged cutting bores
  • The first two threads are conical, the insert works like a thread cutter
  • Chip-forming

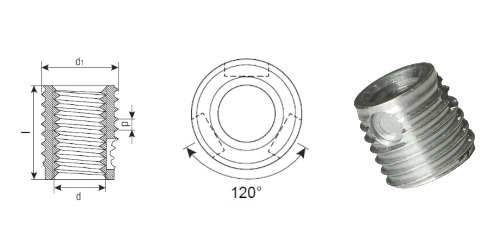

Threaded inserts with chip reservoir, short

Case-hardened steel, galvanized blue / INOX 1.4305

Available in M4, M5, M6, M8 and M10


Here you can find the order designations  |  Download CAD model

Features:

  • Further development of version 2 (with cutting bores)
  • Suitable for all applications that require a chip-free internal thread (e.g. for electronic assemblies)
  • Chip reservoir ensures a consistently clean internal thread
  • No compression, suitable for materials with higher tensile strength

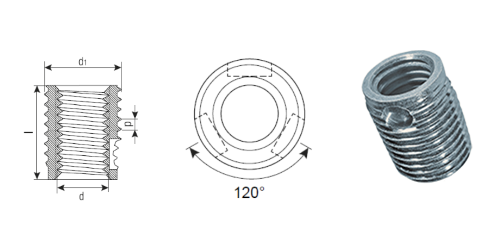

Threaded inserts with chip reservoir, long

Case-hardened steel, galvanized blue / INOX 1.4305

Available in M4, M5, M6, M8 and M10


Here you can find the order designations |  Download CAD model

Features:

  • Further development of version 3 (with cutting bores)
  • Suitable for all applications that require a chip-free internal thread (e.g. for electronic assemblies)
  • Chip reservoir ensures a consistently clean internal thread
  • No compression, suitable for materials with higher tensile strength

Tool for threaded inserts

We offer you the right tool for every product solution and every challenge.





> More information

Didn't find the right thread insert?

If the standard is no longer sufficient - we also manufacture customized special solutions for you based on drawings.

Get in touch with our drawing parts experts. We advise you quickly, professionally and free of charge.

We support you with CAD design and work with you to develop perfect solutions for your challenges.
